UNITE

Square Straight Aluminum Poles

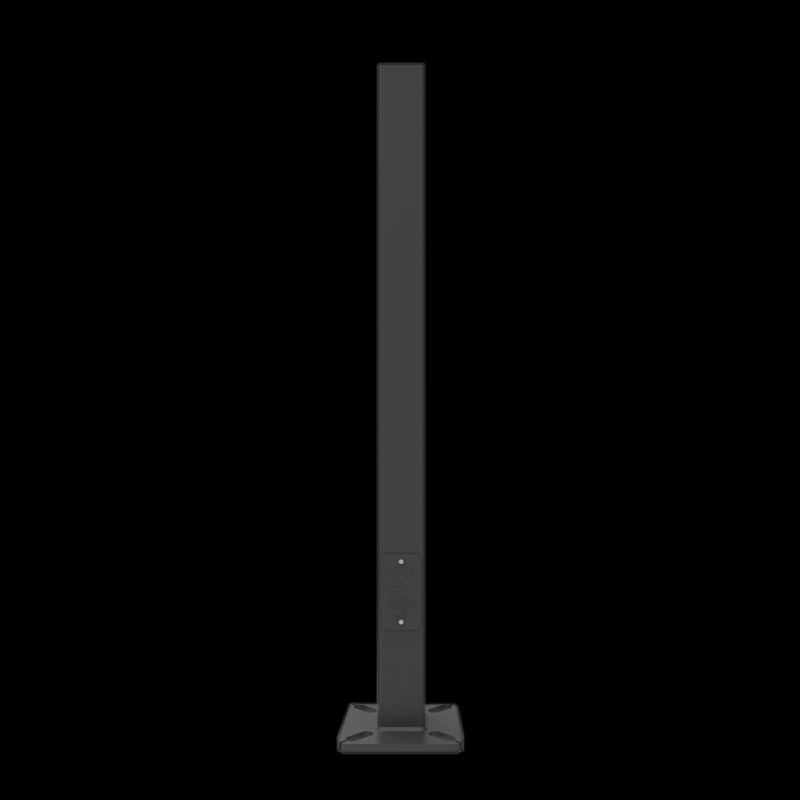

Unite_4_Square_Straight_Aluminum_pole

4"

Square Straight

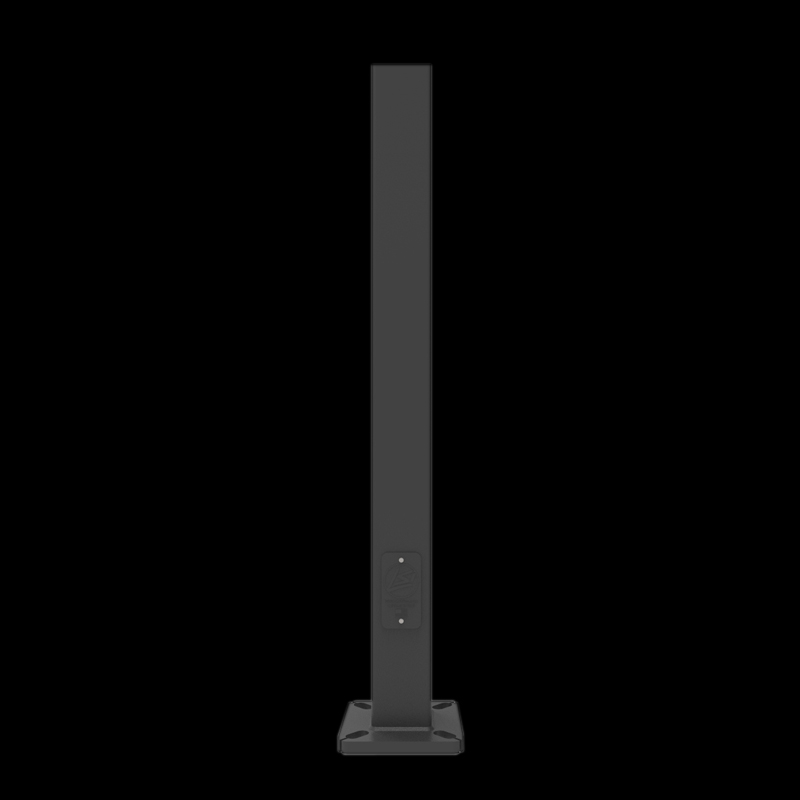

Unite_5_Square_Straight_Aluminum_pole

5"

Square Straight
Alum_6_Square_Straight_Aluminum_pole

6"

Square Straight

Features

  • Aluminum straight round poles 4”, 5″, and 6″ in diameter.
  • The pole shaft is extruded from seamless 6063 T6 aluminum.
  • A removable top cap is provided for poles receiving drilling patterns for the side-mounted luminaire arm assemblies. Other pole top options include Tenon Top, Top Cap Only or Open Top which is typical when the pole top diameter matches the necessary slip fi t dimensions.
  • 2” x 4” oval hand hole and grounding provision are provided (dimensions are nominal). Cover and cover attchment hardware are also included.
  • Every pole is provided with a 5 Year Warranty.

Anchor Base and Cover

  • The anchor base is cast from 356 alloy aluminum and supplied with an
    aluminum two piece base cover.
  • The completed pole assembly is heat treated to a T6 temper.
  • Optional decorative base covers available.

Anchor Bolts

  • Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two
    hex nuts and two fl at washers.
  • Bolts have an “L” bend on one end and are galvanized a minimum of 12”
    on the threaded end.

HARDWARE

  • All structural fasteners are galvanized high strength carbon steel.
  • All non structural fasteners are galvanized or zinc plated carbon steel
    or stainless steel.

FINISHES

  • Finishes include anodized or painted.
  • Special finishing colors and fixture matching options available.
